1. SMT MACHINE
CORE APPLICATIONS
-
Automated High-Volume PCBA Production: Supports various PCB types with high throughput and exceptional placement accuracy.
-
Production Cost Optimization: Intelligent design minimizes material waste during production.
-
Consistent Product Quality: Ensures uniform assembly quality that complies with stringent international standards.
KEY TECHNICAL FEATURES
-
Placement Speed: 36,000 CPH (0.1 second/component)
-
Placement Accuracy: ±0.03 mm/Chip
-
Supported PCB Size: L50 × W50 mm to L510 × W460 mm
-
Component Range: From ultra-small 0201 (0.6 × 0.3 mm) packages up to 32 mm components.
-
Feeder Capacity: Up to 120 reels (8 mm tape) using highly stable electronic feeders.
-
100% Automation: Automatic nozzle changer synchronized with the automatic solder paste printer.
-
Operating Requirement: Clean, dry compressed air ≥ 0.45 MPa.
|
 |

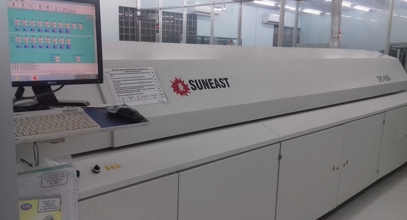

2. REFLOW MACHINE
CORE APPLICATIONS
-
SMT Reflow Soldering: Designed for heating solder paste to permanently attach SMT components on all PCBA products.
-
Continuous Industrial Operation: Supports stable and reliable 24/7 production for high-volume manufacturing lines.
KEY TECHNICAL FEATURES
-
High-Pressure Hot Air Convection Technology: High-efficiency heating system with heat-resistant motors and inverter-controlled airflow ensures uniform temperature distribution.
-
8 Heating Zones (16 Independent Modules): Eight upper and eight lower heating zones provide independent temperature control for each stage of the reflow process.
-
Wide Temperature Range: Maximum temperature up to 300°C, suitable for both leaded and lead-free soldering.
-
High-Efficiency Cooling System: Rapid cooling after reflow ensures bright, reliable solder joints while preventing PCB deformation.
-
Flexible Thermal Profile Management: Intelligent software enables quick programming, storage, and switching of thermal profiles for different product models.
|
 |
3. WIRE CUTTING MACHINE
CORE APPLICATIONS
-
Automatic Multi-Size Wire Cutting: Designed for cutting various wire sizes with high flexibility and precision.
-
Fully Automated Process: Eliminates manual operations through continuously improved automation technology developed by Year 2000, maximizing production efficiency.
KEY TECHNICAL FEATURES
-
Industrial-Grade Accuracy: Ensures consistent cutting lengths with minimal tolerance and reduced material waste.
-
High-Speed, Stable Operation: Outstanding processing speed supports continuous production and meets the demands of high-volume manufacturing.
|
 |
